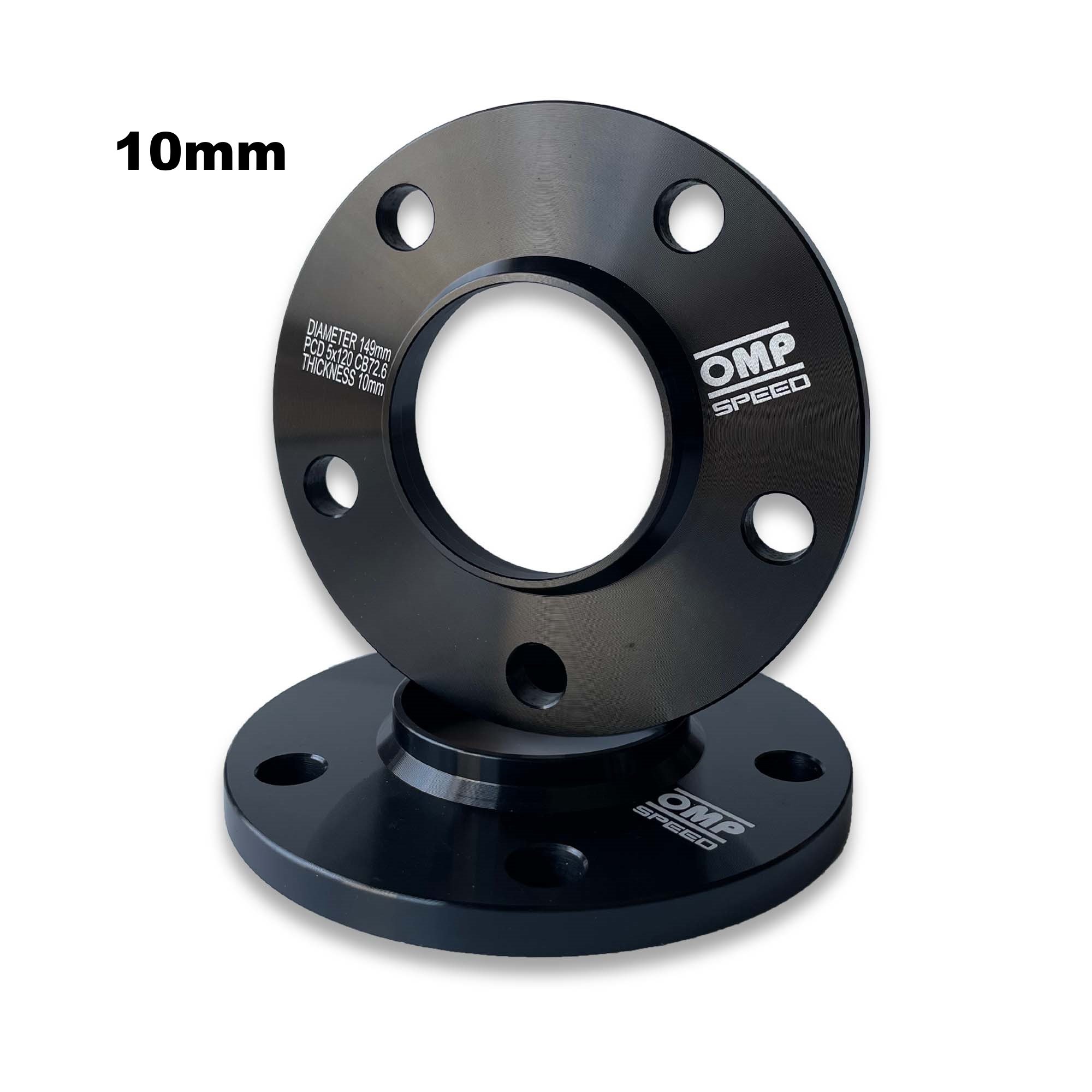

BLACK SPACERS HUB-CENTRIC

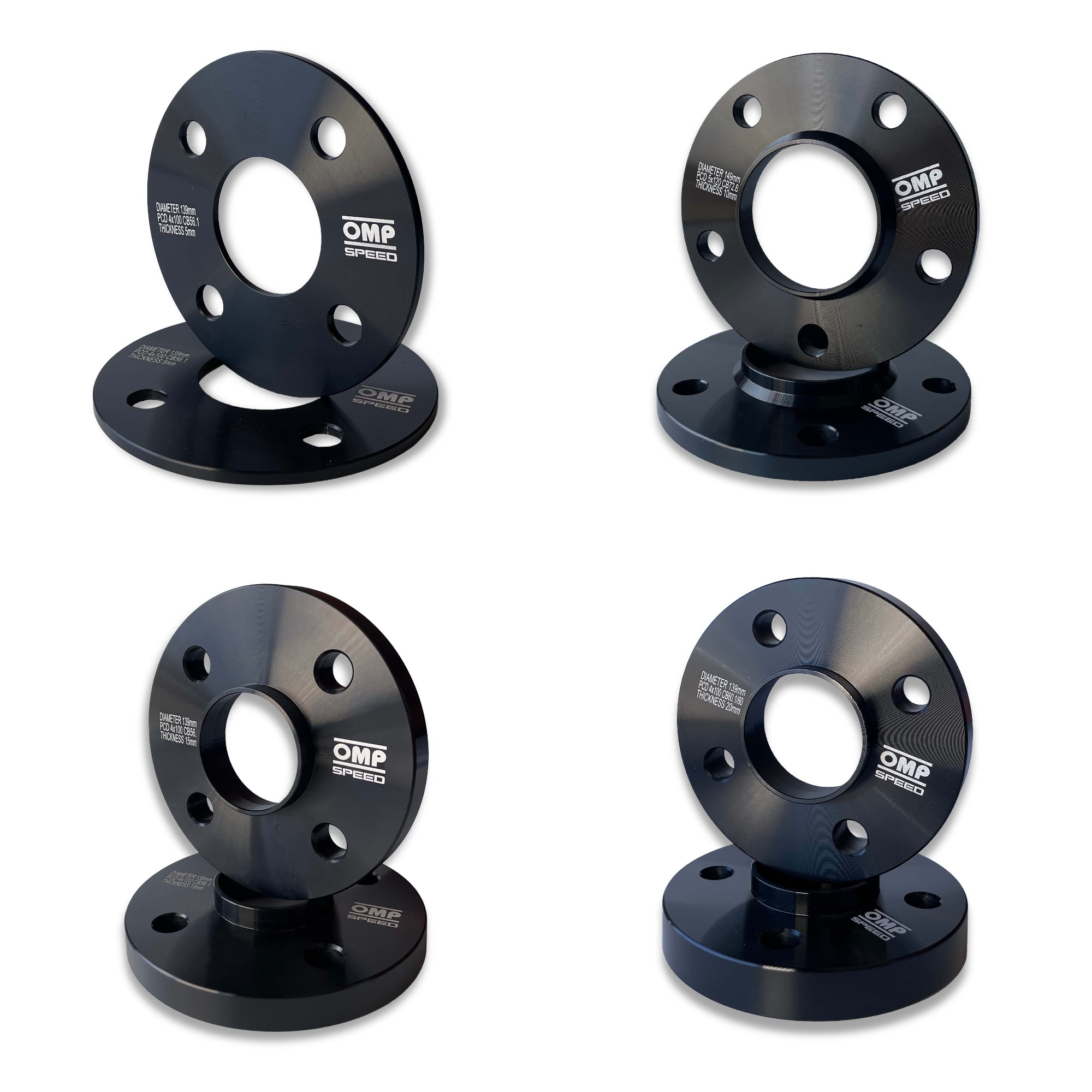

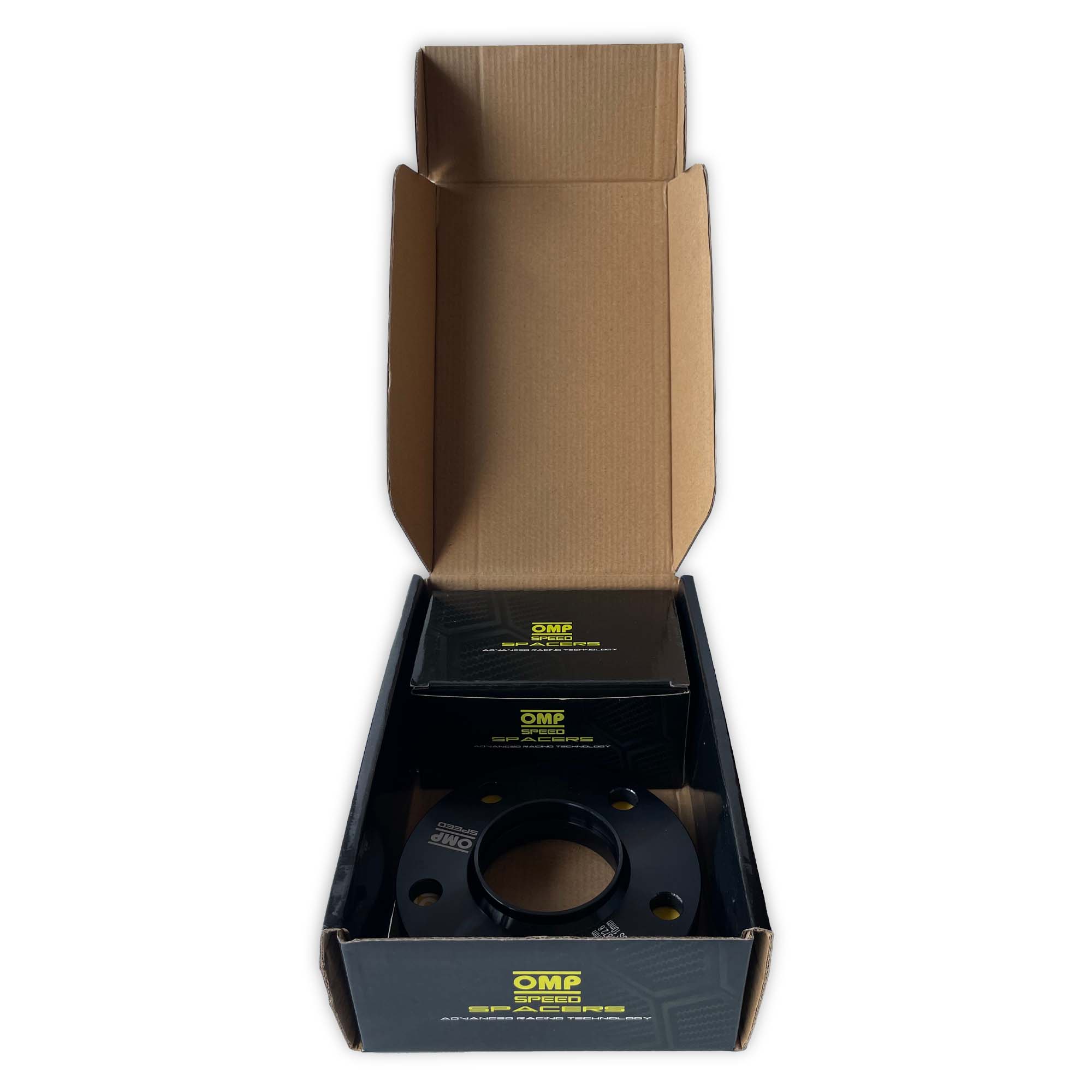

The Aluminium Black Spacers set contains 2 spacers and bolts or nuts or studs, elegant design and texture. The Spacers are made of Aluminium 6061-T6 which qualify it to be used in extreme conditions in Motorsport and all cars and the bots or nuts or studs are made of Carbon Steel Din 10.9. The Spacers are available in different sizes.

CB.H = CB.W for all thickness above 10mm

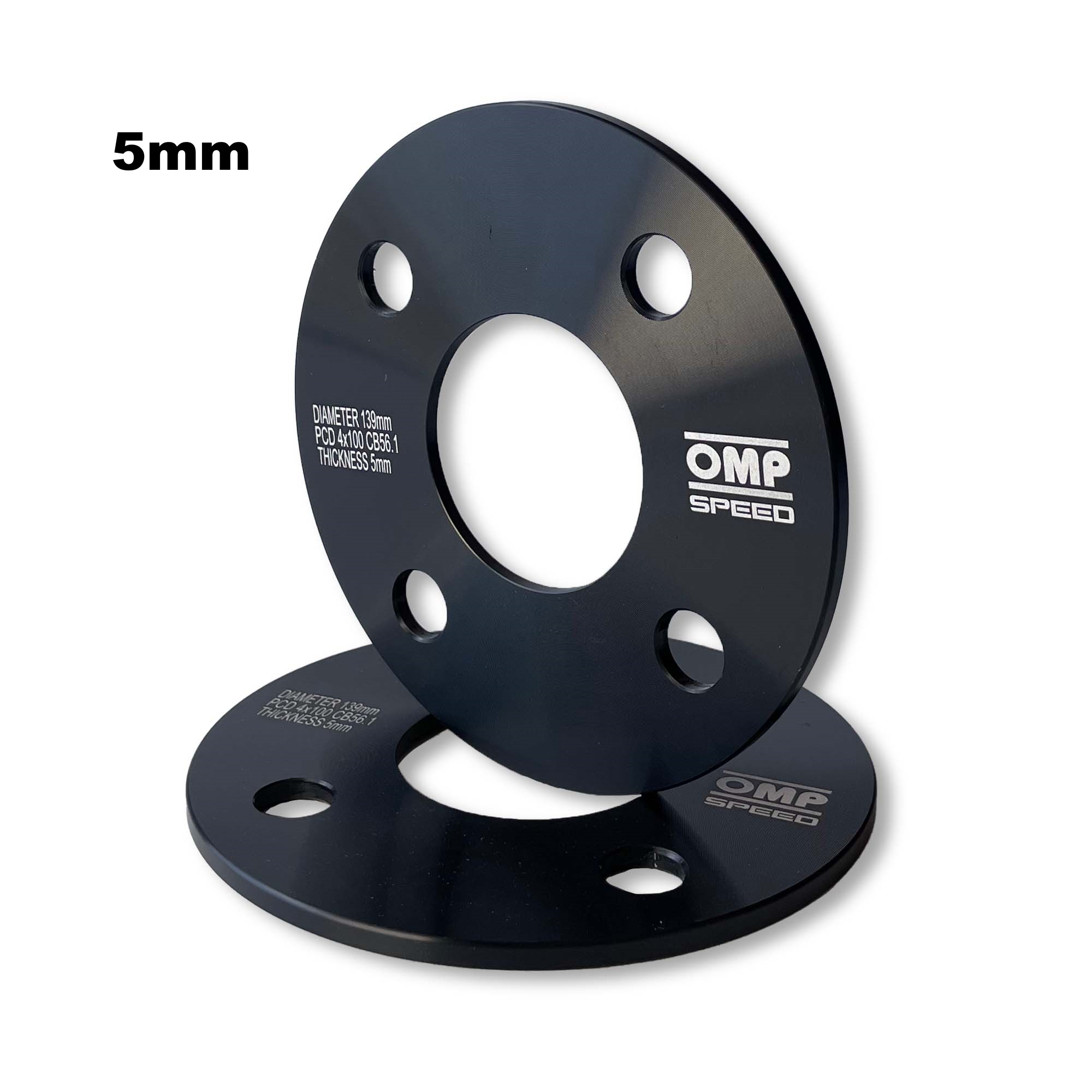

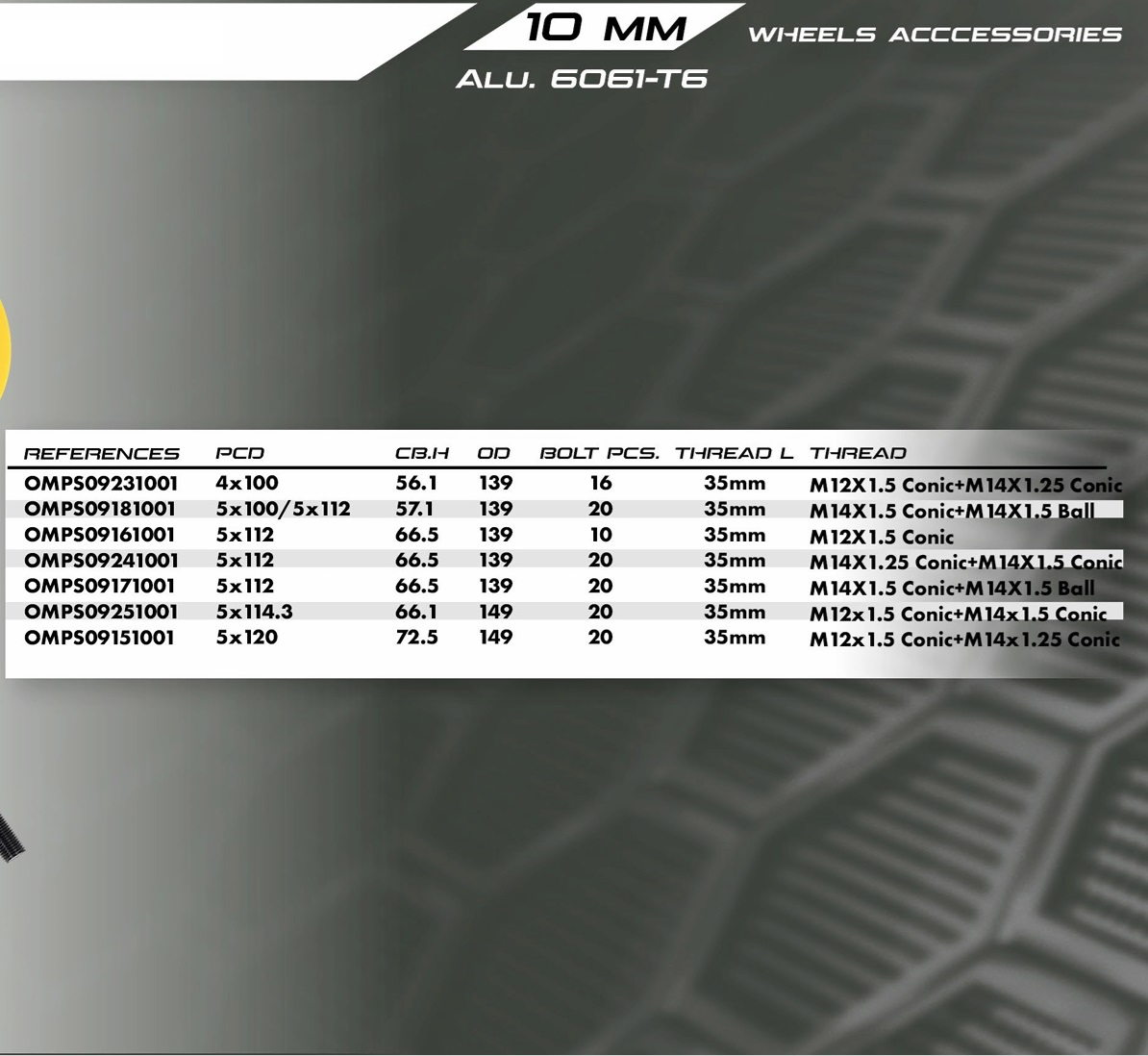

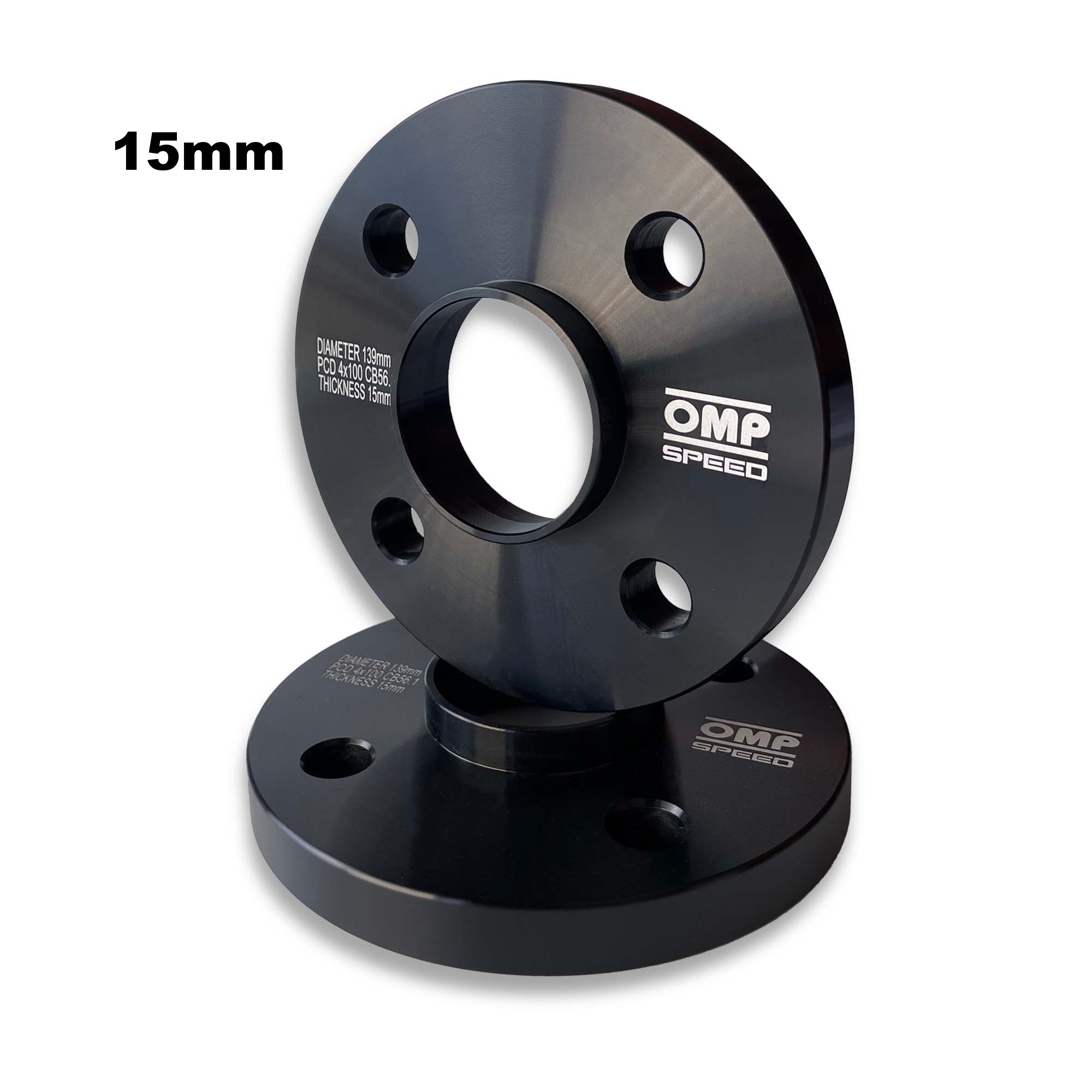

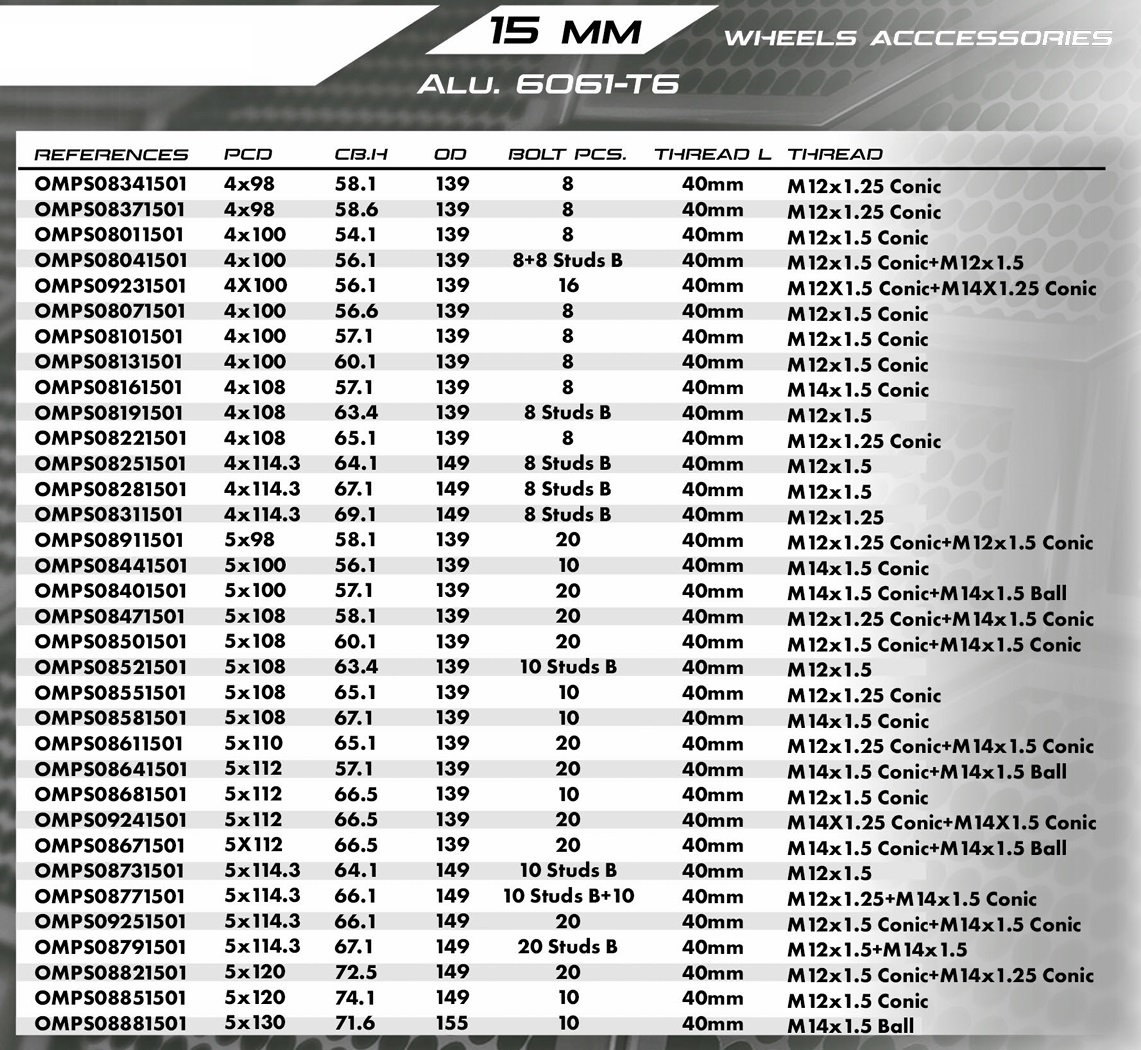

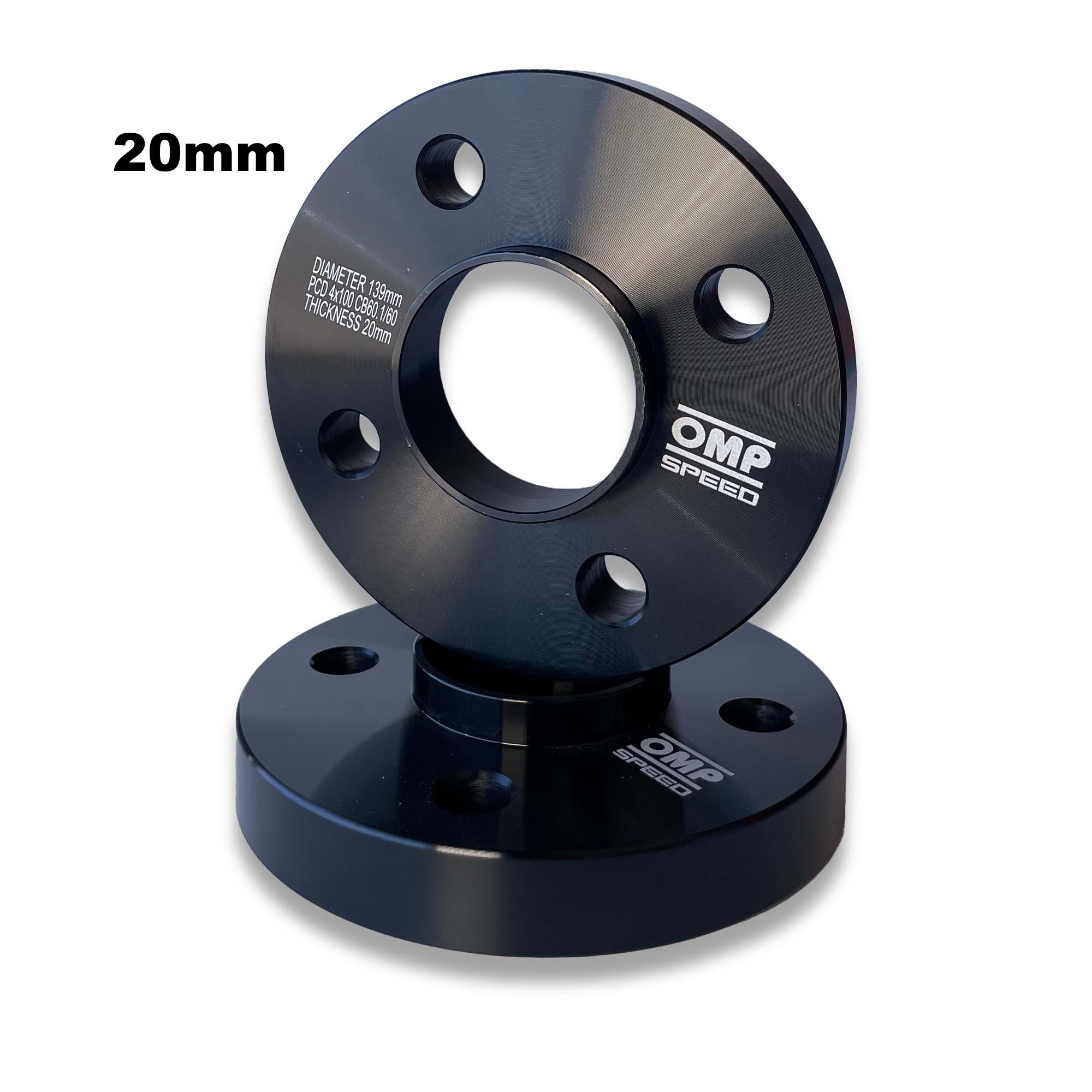

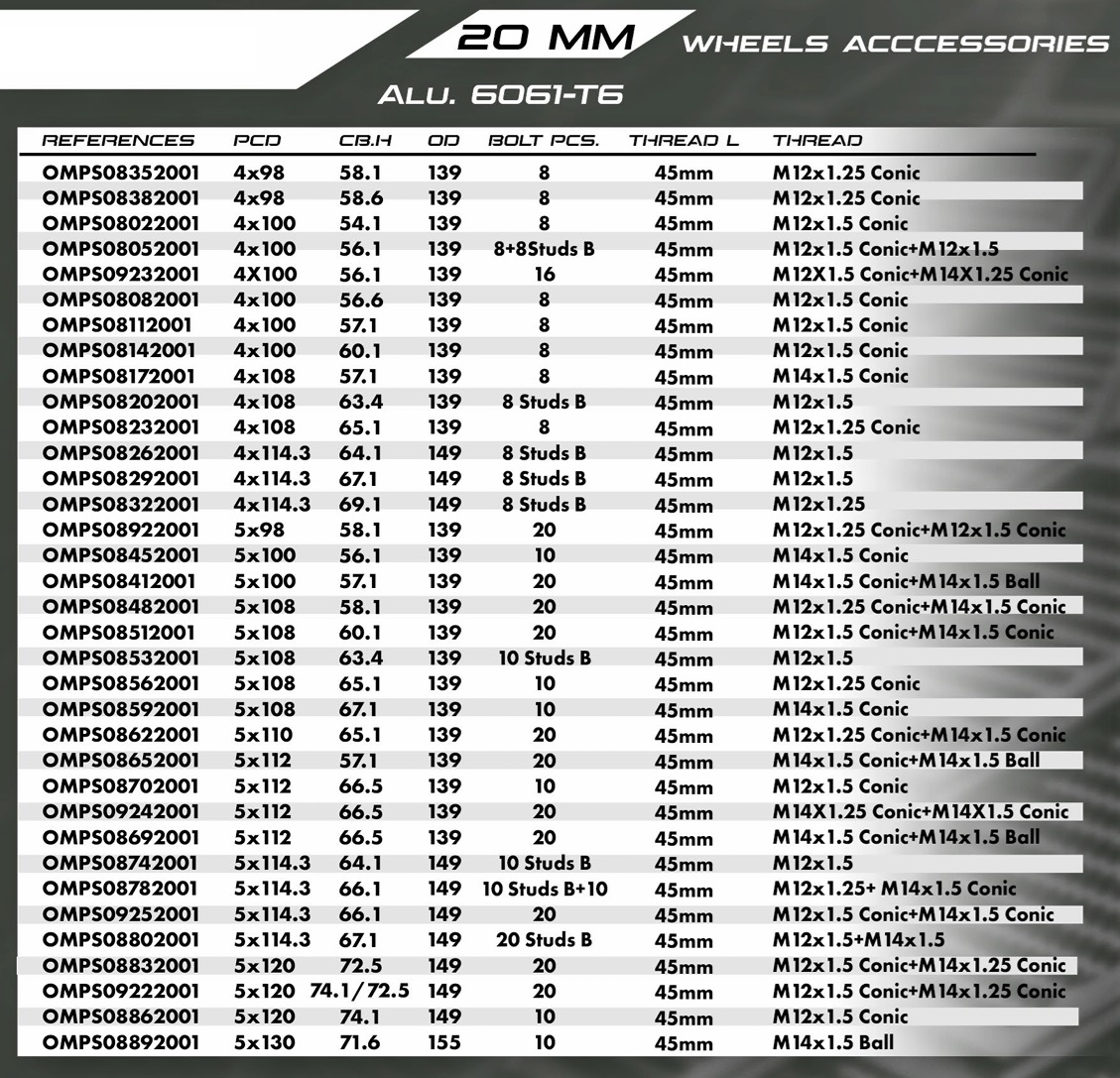

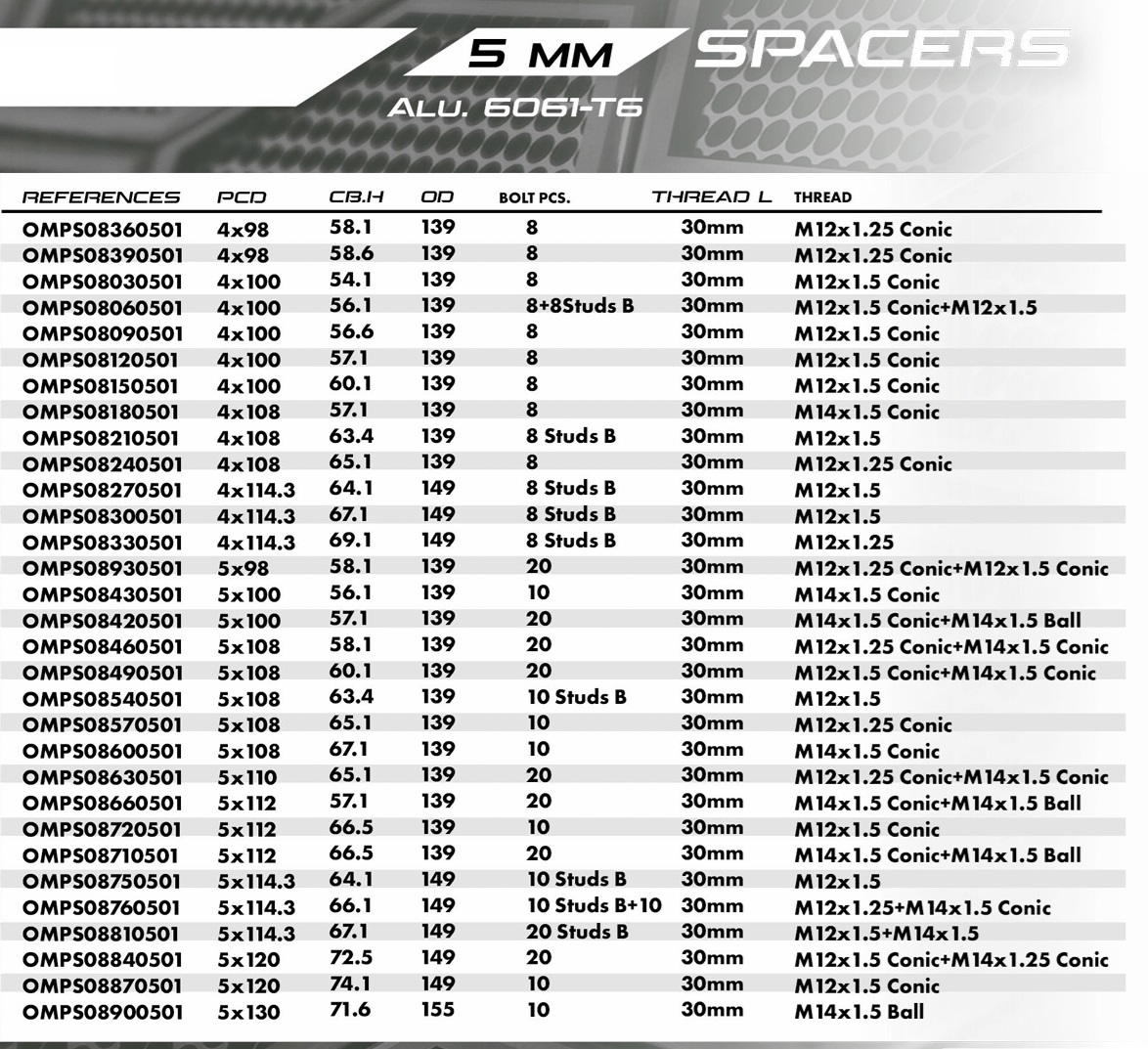

Spacers/Bolts Length: 5mm/30mm, 10mm/35mm, 15mm/40mm, 20mm/45mm,

Key:

PCD: Pitch Circle Diameter

CB.H: Center Bore Hub

CB.W: Center Bore Wheel

OD: Outer Diameter

SKU: OMPS0801-0950#### Category:

Additional information

Weight N/A
Dimensions N/A
Brand

OMP Speed

Materials

Aluminium 6061-T6, Carbon Steel DIN 10.9

Colour

Black

PCD

4×100, 4×108, 4×114.3, 4×98, 5×100, 5×108, 5×110, 5×112, 5×114.3, 5×120, 5×130, 5×98

Thickness

10mm, 15mm, 20mm, 25mm, 30mm, 5mm, 8mm

CB.H

54.1, 56.1, 56.6, 57.1, 58.1, 58.6, 60.1, 63.3, 63.4, 64.1, 65.1, 66, 66.1, 66.5, 66.6, 67.1, 69.1, 71.6, 72.5, 72.6, 74.1

Size

M12x1.25, M12x1.5, M14x1.25, M14x1.5

Wheel Fasteners

Bolt, Nut/Stud
